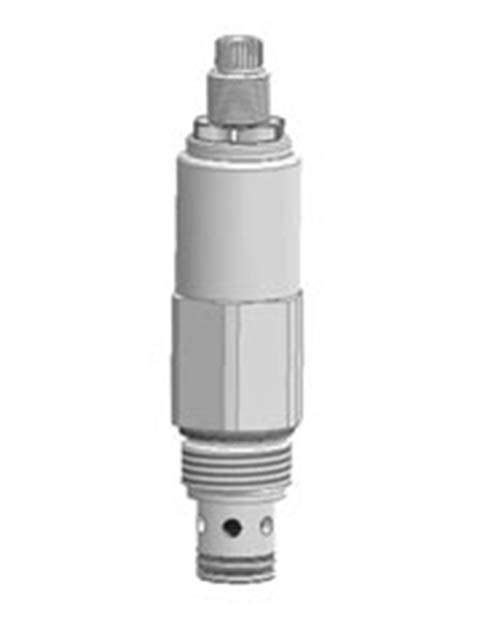

RDH103 Relief Valve

Rated Flow:

75 LPM (20 GPM)

Leakage:

5 drops/min. (.33 cc/min.) @75% of crack pressure

Max Pressure:

380 Bar (5500 PSI)

Seals:

“D”-Ring

Operating Temperature:

-45C to +93.3C (-50F to +200F)

Pressure Range:

34.5 - 207 Bar (500 - 3000 PSI)

Adjustment Type:

Screw

Common Cavity:

Size 10, 2-way

Valve Body:

B10-2

UOM:

EA

Valve Type:

Relief Valve

Valve Type Detail:

Differential Area

Series:

RDH103

Port:

None - Cartridge Only

Common Cavity Type:

Size 10, 2-way

Parker Division:

Hydraulic Cartridge Systems

Parker Group:

Hydraulic
